Electrical Safety in Volatile Zones: Specifying ATEX and IECEx Explosion-Proof Enclosures
Introduction
In an atmosphere filled with ambient hydrocarbon gases, hydrogen vapors, or combustible dust, a single tiny spark from a basic electrical relay or junction box can cause a massive explosion. In chemical plants and offshore platforms, electrical components cannot be housed in standard plastic or sheet-metal panels.
When deploying control systems, telemetry modules, or power distribution boxes across a facility, understanding international hazardous area classifications (ATEX in Europe, NEC in North America, and IECEx globally) is absolutely paramount.

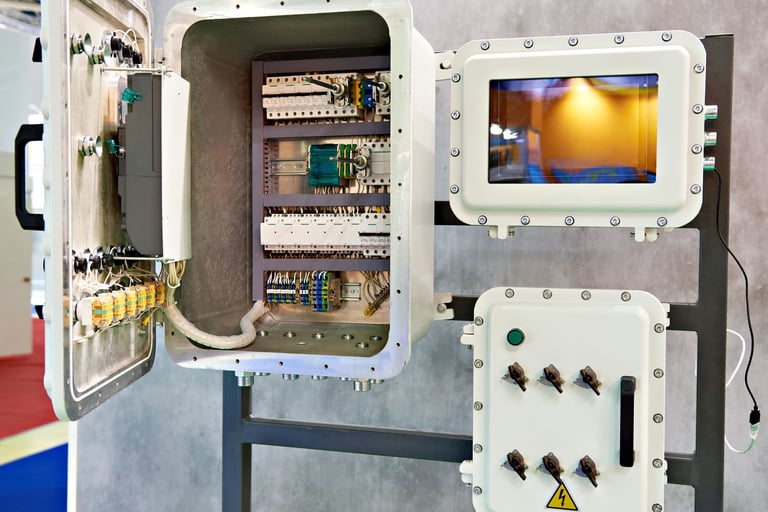

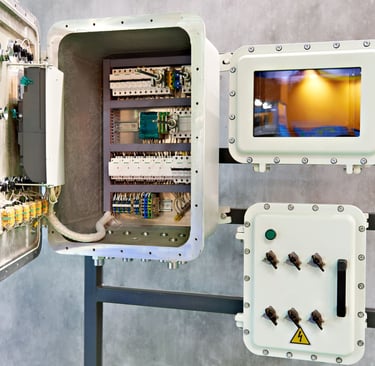

Explosion-Proof Electrical Control Enclosure
Explosion-Proof vs. Flameproof: The Ex d Concept
A common misconception is that an "explosion-proof" enclosure prevents gas from entering the box. In reality, gases will eventually migrate inside.
The true design philosophy behind Flameproof (Ex d) protection is that the enclosure must be strong enough to contain an internal explosion without rupturing, and it must cool any exiting flame front so it cannot ignite the explosive atmosphere surrounding the box.
Heavy Cast Materials: Ex d enclosures are typically cast from heavy-duty aluminum or ductile iron with thick, bolted structural flanges.
Flame Paths: The joints between the cover and the body feature precision-machined "flame paths." If an internal spark ignites gas inside the box, the hot expanding gases are forced to travel through this tightly tolerances gap, cooling them below the auto-ignition temperature of the external gas zone before escaping.
Increased Safety: The Ex e Alternative
For equipment that does not produce sparks during normal operation (such as terminal blocks, wiring connections, or light fixtures), engineers often specify Increased Safety (Ex e) enclosures.
Instead of containing an explosion like an Ex d box, an Ex e enclosure uses robust insulation, high-impact materials, and strict clearance spacing to ensure that arcs, sparks, or hot surfaces cannot form in the first place. Ex e panels are significantly lighter and easier to open during routine inspections, making them ideal choice for clean signal junction boxes in hazardous zones.
