5 Common Reasons for Chemical Pump Failures and How to Extend Their Service Life in Corrosive Fluids
Introduction
Industrial chemical pumps are the heart of fluid transport systems, but they are also highly vulnerable. It is a common frustration for plant engineers when a newly installed chemical process pump suffers from a cracked liner, mechanical seal failure, or a sudden drop in flow rate within just a few months of operation.
Frequent pump maintenance cuts directly into your plant's profitability. Understanding why chemical pumps fail is the first step toward extending their Mean Time Between Failures (MTBF). Here are the 5 leading causes of failure and how to solve them.
The Top 5 Failure Modes in Corrosive Fluid Pumping
1. Mechanical Seal Leakage
Mechanical seals represent the number one point of failure in chemical pumps. Corrosive fluids can chemically attack the elastomer O-rings, or crystallizing chemicals can lodge between the seal faces, causing gaps and rapid leakage.
2. Cavitation Damage
When a pump's Net Positive Suction Head Available ($NPSHa$) drops below the required limit, vapor bubbles form and violently collapse against the impeller. In lined or plastic pumps, this micro-implosion quickly strips away the anti-corrosion lining.
3. Dry Running
Running a pump without fluid causes immediate, localized frictional heat. For mag-drive (magnetic drive) pumps or lined centrifugal pumps, dry running can melt internal fluoroplastic parts and damage bearings within minutes.
4. Corrosive Permeation
Over time, aggressive chemicals can permeate through low-quality plastic linings at high temperatures, attacking the outer cast iron or steel casing underneath, leading to silent structural failure.
5. Misalignment and Vibration
Poor installation stresses the pump casing and piping joints. In heavy industrial environments, continuous vibration accelerates bearing wear and destroys internal corrosion-resistant components.
The Solution: Moving Toward Zero-Leakage
To dramatically lower your maintenance overhead, consider upgrading to Magnetic Drive Sealless Pumps for hazardous, volatile, or highly corrosive fluids. By eliminating the mechanical seal entirely, you eliminate the primary cause of industrial chemical leaks.
Optimize Your Fluid Transfer Systems

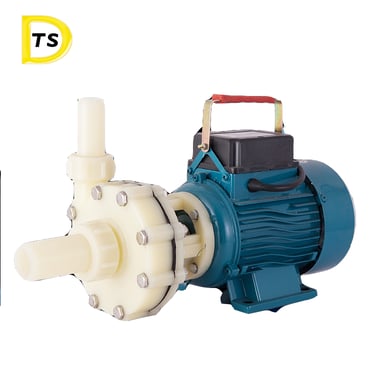

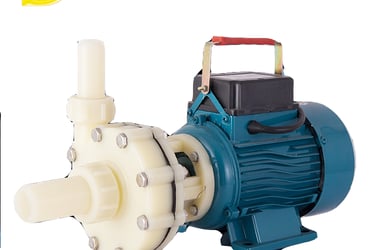

Pipemav supplies high-performance chemical centrifugal pumps and sealless magnetic drive pumps engineered for hazardous environments.
