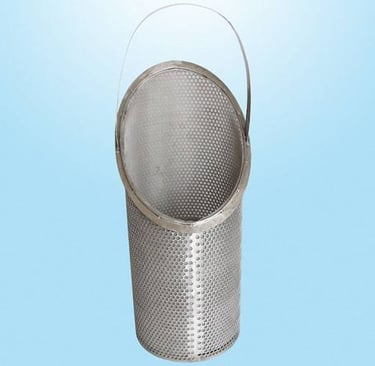

Bag type filter basket
Short Description:
As the core part of the bag type filter, the bag type filter basket mainly plays a role of supporting. When it works, the bag filter was put into the basket, the liquid flows from the inlet, then outflows through the outlet after the filtration inside, impurities were intercepted in the bag, replace the bag then continue to use; The characteristics: Novel structure, small volume, flexible operation, energy saving, high efficiency, strong applicability, etc.
Working principle and characteristics: As the core part of the bag type filter, the bag type filter basket mainly plays a role of supporting. When it works, the bag filter was put into the basket, the liquid flows from the inlet, then outflows through the outlet after the filtration inside, impurities were intercepted in the bag, replace the bag then continue to use; The characteristics: Novel structure, small volume, flexible operation, energy saving, high efficiency, strong applicability, etc.
Application: mainly used in petroleum, chemical industry, minerals, food, pharmaceutical, environmental protection, sea water treatment, scientific research and other pressure systems, such as media purification and flow control and other industries.
Structure：Mainly made by crimped wire mesh or perforated plate;
Product Detail
CATEGORIES

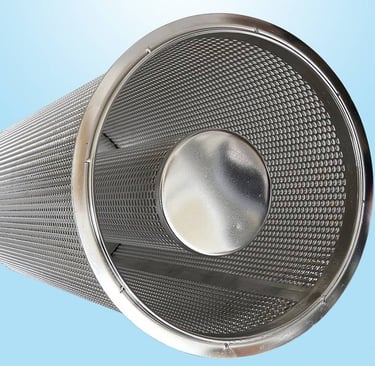

basket type filter
Short Description:
Basket type filter is the main part of the Metal mesh basket, generally used in the entrance of the filter basket, mesh used inside of the basket is available for quickly disassemble and cleaning, and usually used on the tubes needed long term filtration; When the fluid enters the filter basket through the main tube, the impurities are blocked inside the basket, clean filtrate passed and discharged from the filter outlet; When the basket needs cleaning, just take out the detachable basket, deal with it and then reload it; Characteristics: compact structure, high filtration capacity, small pressure loss, wide application range, convenient maintenance and low price, etc.
Working principle and characteristics
Basket type filter is the main part of the Metal mesh basket, generally used in the entrance of the filter basket, mesh used inside of the basket is available for quickly disassemble and cleaning, and usually used on the tubes needed long term filtration; When the fluid enters the filter basket through the main tube, the impurities are blocked inside the basket, clean filtrate passed and discharged from the filter outlet; When the basket needs cleaning, just take out the detachable basket, deal with it and then reload it; Characteristics: compact structure, high filtration capacity, small pressure loss, wide application range, convenient maintenance and low price, etc.
Application:
1.The weak corrosive materials used in the chemical industry and petrochemical production, such as: water, oil, ammonia, hydrocarbons, etc.
2.Corrosive materials used in the chemical production, such as: caustic soda, soda ash, concentrated sulfuric acid, dilute sulfuric acid, carbonic acid, aldehyde acid, etc.
3.Refrigeration materials at low temperature, such as: liquid methane, liquid ammonia, liquid oxygen and different refrigerants.
4.Materials with sanitary requirements in food and pharmaceutical production, such as: beer, beverages, dairy products, syrup, etc.

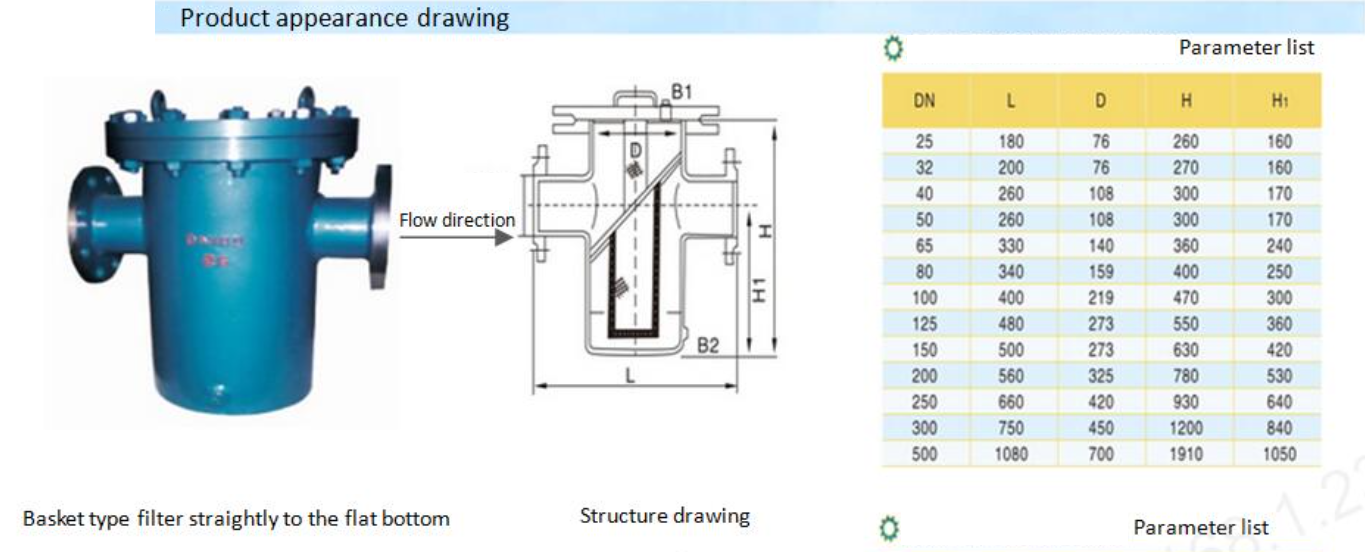

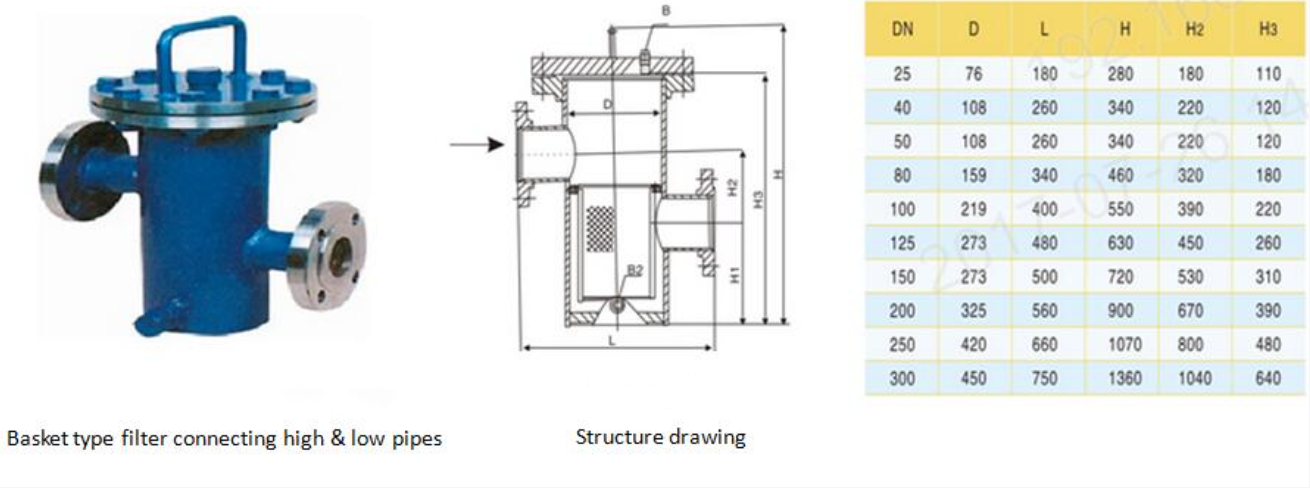

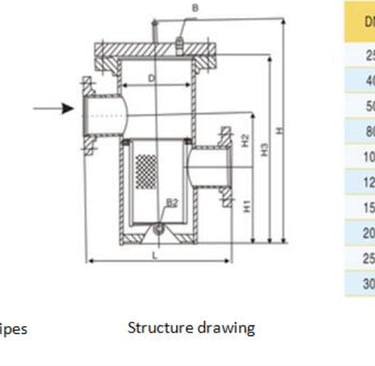

Structure and application device:
Product Detail
CATEGORIES

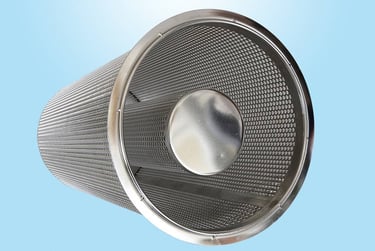

T type basket
Short Description:
T type filter basket is the main part of the T type filter, generally used in the tubes with bigger diameter, the mesh inside is also available for cleaning and replacement. When the fluid enters the filter cartridge with a kind of mesh, the impurities are blocked, and clean filtrate been discharged from the filter outlet. When the basket needs cleaning, just take out the detachable cylinder, deal with it and then reload it.; Characteristics: compact structure, high filtration capacity, small pressure loss, wide application range, convenient maintenance and economic, etc.
Working principle and characteristics
T type filter basket is the main part of the T type filter, generally used in the tubes with bigger diameter, the mesh inside is also available for cleaning and replacement. When the fluid enters the filter cartridge with a kind of mesh, the impurities are blocked, and clean filtrate been discharged from the filter outlet. When the basket needs cleaning, just take out the detachable cylinder, deal with it and then reload it.; Characteristics: compact structure, high filtration capacity, small pressure loss, wide application range, convenient maintenance and economic, etc.
Application:
1. The weak corrosive materials used in the chemical industry and petrochemical production, such as: water, oil, ammonia, hydrocarbons, etc.
2. Corrosive materials used in the chemical industry production, such as: caustic soda, soda ash, concentrated sulfuric acid, dilute sulfuric acid, carbonic acid, aldehyde acid, etc.
3. Refrigeration materials at low temperature, such as: liquid methane, liquid ammonia, liquid oxygen and different refrigerants.
4. Materials with sanitary requirements in food and pharmaceutical production, such as: beer, beverages, dairy products, syrup, etc.
Structure and application device:
Product Detail
Mesh choice
The main consideration is the particle size of the impurities, determined based on the technical requirements of the media process. Various sizes details please check the below table:
CATEGORIES

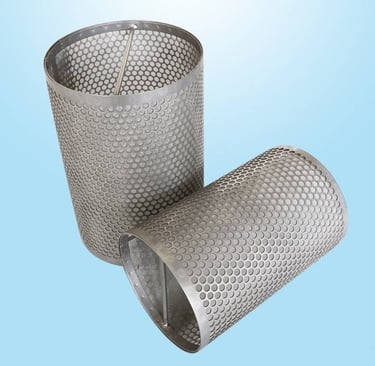

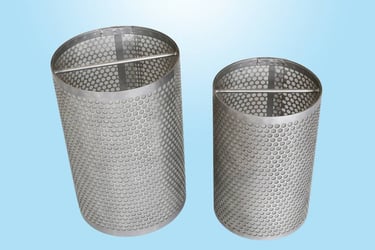

Y type basket
Short Description:
Y type filter basket is the main part of the Y type filter, usually installed in the pressure relief valve, pressure off valve, water level valve or other equipment of the import side, used to remove impurities in the media to protect the normal use of the valve and equipment. Y type filter is with the characteristics of advanced structure, small resistance, convenient sewage and so on.
Working principle and characteristics
Y type filter basket is the main part of the Y type filter, usually installed in the pressure relief valve, pressure off valve, water level valve or other equipment of the import side, used to remove impurities in the media to protect the normal use of the valve and equipment. Y type filter is with the characteristics of advanced structure, small resistance, convenient sewage and so on. Y type filter can be used for water, oil and gas filtration. General mesh used for water: 18~30mesh, for gas: 10~100 mesh, for oil: 100~480 mesh. When the liquid passes the main tube to enter the basket filter, the solid impurity particles are blocked in the basket filter, and then the clean fluid goes through the basket filter, and discharged from the filter outlet.
Application:
Mainly used in agricultural irrigation, water filtration system, circulating water filtration, petroleum chemical industry, mechanical and electrical, ion exchange medicine pretreatment, especially plays a vital role in sanitary waste water and industrial waste water treatment, with the design and various advantages of the usage, the precious water resources has been effectively reused, also saving a lot of water resources. At the same time, after the treatment by Y type filter, the water quality can not only meet the national emission standards, but also achieve the purpose of recycling usage.

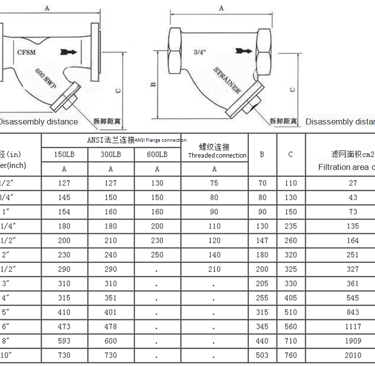

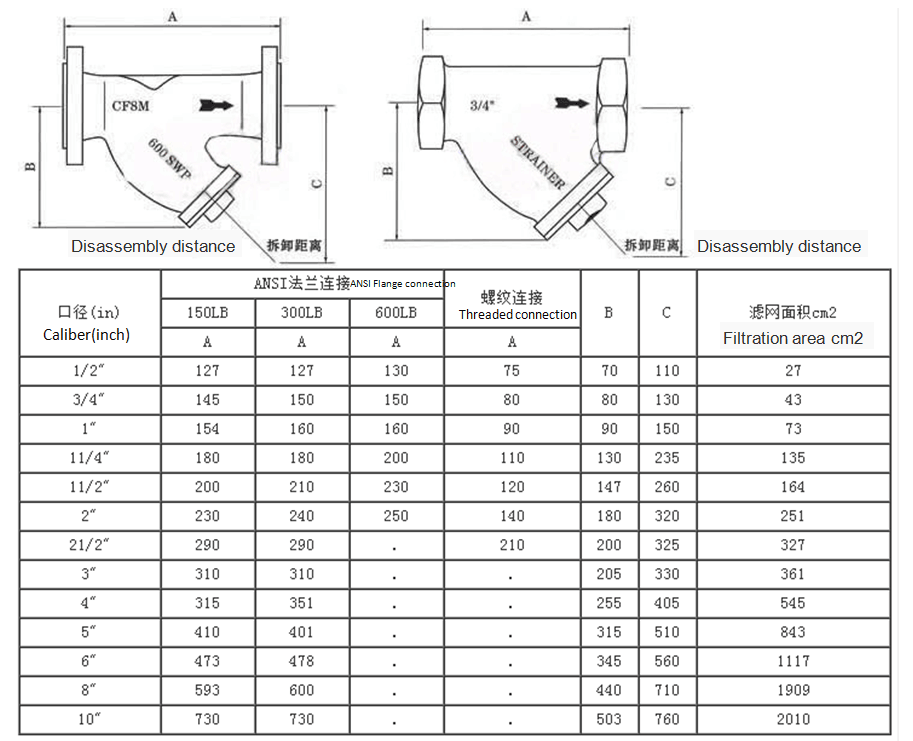

Structure and application device:
